| Model 207 | PC/104 Isolated Power Supply |
Features
- Input voltage of 9-36 VDC nominal
- Output voltages and currents:
+5 VDC at 4 A maximum rating
+12 VDC at 0.42 A maximum rating
-12 VDC at 0.425 A maximum rating
-25°C to 71°C operating range
1500 V maximum input/output isolation
|
 |
Sensoray has developed the Model 207 PC/104 Isolated Power Supply featuring input voltage of 9-36 VDC nominal, output voltages and currents of +5 VDC at 4 A maximum rating, +12 VDC at 0.42 A maximum rating, -12 VDC at 0.425 A maximum rating. The 207 has -25°C to 71°C operating range and 1500 V maximum input/output isolation.
The 207 has three different terminations for applying input power. One of these is a spring-loaded terminal block that accepts two wires without the use of a connector. There are two output terminations for supplying regulated power to external devices such as a cooling fan and RF amplifier 2400-500RF.
Specifications
| Input voltage range |
9-36 VDC nominal |
| Input current |
3 A at 9 V input | 0.68 A at 36 V input |
| Total output power |
20W maximum with forced external cooling |
| Efficiency |
75% at 9 V input | 82% at 20 V input |
| Output voltages and currents |
+5 VDC at 4 A maximum rating, +12 VDC at 0.42 A maximum rating, -12 VDC at 0.425 A maximum rating |
| Output accuracy |
±0.24 V for +12 V output, ±0.24 V for - 12 V output,
±0.1 V for 5 V output |
| Temperature range |
-25°C to 71°C operating range |
| Input/Output isolation |
1500 V maximum |
| Output ripple |
Pk - Pk 150 mV on 5 V | 100 mV on 12 V |
| Line regulation (full input voltage rating) |
±0.12 V for +12 V output, ±0.12 V for -12 V output, ±0.05 V for 5 V output |
| Load regulation (full load swing) |
±0.12 V for +12 V output, ±0.12 V for -12 V output, ±0.025 V for 5 V output |
| Protection |
Reverse input polarity opens resettable fuse, output short circuit protected |
| Switching frequency |
83 kHz |
| Storage temperature |
-20 to 85 C |

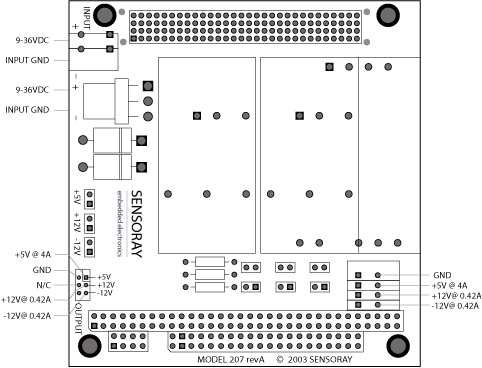

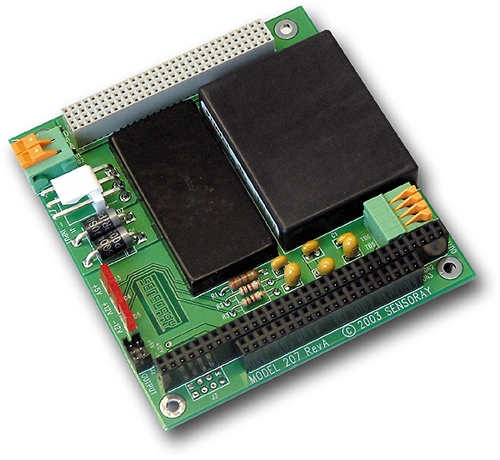

Images and Mechanical Drawings
Prices
| Model 207-01 |
PC/104 Isolated power supply, 5V |
Qty. 1 $131 |
Qty. 1 $127 |
| Model 207-02 |
PC/104 Isolated power supply, 5V, ± 12V |
Qty. 1 $240 |
Qty. 2-9 $235 |
|
