4-input frame grabber | Model 311

Model 311 4-input frame grabber
  • High frame rate transfers to PC/104+
  • Color or monochrome: PAL, SECAM, NTSC, RS-170, CCIR compatible
  • 4 composite video inputs or 3 composite and one S-video
  • 8 TTL I/O lines for camera control
  • Programmable AGC, hue, contrast, saturation

Model 311 is a legacy product and is not recommended for new designs. Some of legacy products may be available but may have significant lead times and minimum order requirements. For new designs, use our Product Finder to find a comparable product or contact our Design Support Team.

Description

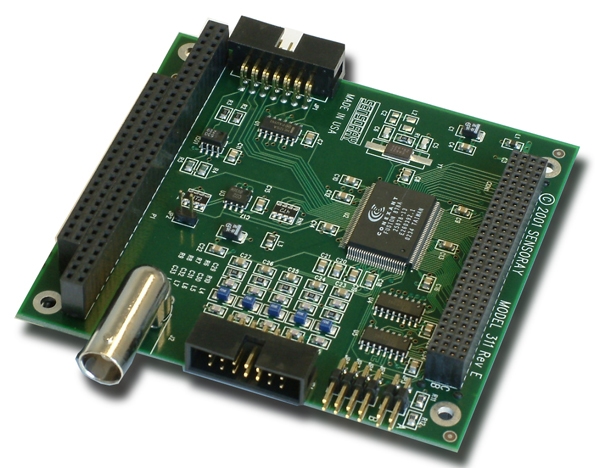

Model 311 is a PC/104+ board that captures uncompressed video from one analog NTSC/PAL input. It has four video inputs that allow up to four composite, or three composite and one S-video source to be connected to the board. A programmable video switch selects the input to be captured. Eight general-purpose digital I/Os (four in, four out) are provided for applications such as capture triggering and camera/illumination control.

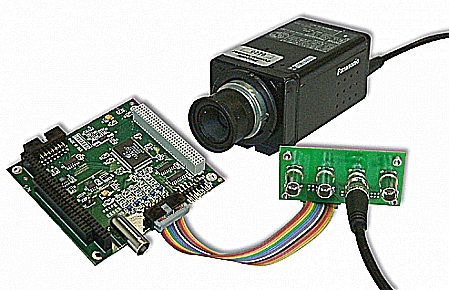

Model 311 with 311TA termination board


Frame rate

Model 311 can transfer 30 frames per second with the supplied software. It supports a variety of digital formats including RGB24 and Y8 that are directly compatible with Windows bitmaps.

Synchronization

The Model 311 uses special circuitry to achieve horizontal and subcarrier synchronization to incoming video. It guarantees generation of the required pixel/line from a video source in which line length can vary by several microseconds. This circuitry allows the 311 adapter to quickly and accurately lock on to video signals, regardless of source. Since the technique is completely digital, the 311 can recognize unstable signals caused by VCR head switching and adapt the locking mechanism to accommodate the source.

Image scaling

Under software control, the 311 adapter can independently scale the X and Y dimensions of the captured frame. Full-resolution video may be reduced to any size down to the size of an icon. A software selectable digital filter is available to minimize aliasing artifacts induced by scaling.

A/D Conversion

The 311's signal processor uses two flash analog-to-digital converters; one for chrominance and one for luminance. Each A/D provides 2x over sampling of the camera signal. Over sampling, combined with analog anti-aliasing filters, significantly reduces the overall sensitivity to unwanted aliasing signals and enhances the 311's digital filtering.

The 311 is capable of sending just the luminance data to the host's image buffer. This feature speeds capturing monochrome images.

Specifications

Capture rate30 frames/sec (NTSC, RS-170, CCIR)
25 frames/sec (PAL, SECAM)
A/D resolution8 bits luminance
8 bits chrominance
FIFO size560 bytes (280 pixels)
Output resolution768x576 (PAL, SECAM)
640x480 (NTSC, RS-170)
Y bandwidth error0.6 dB
Board dimensions(W x H x D): 4.07 x 3.77 x .98 inches
Output formatSeveral
Input power5 V (at 280 mA)
Bus structurePC/104+
Video
Number of cameras NTSC per channel frames/second PAL per channel frames/second
1 30 25
2 8 6
3 3 2
4 1 1

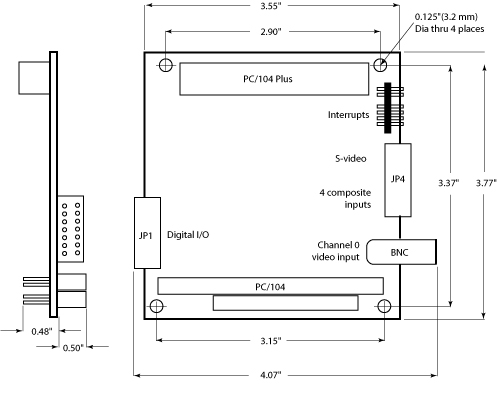

Model 311 board layout

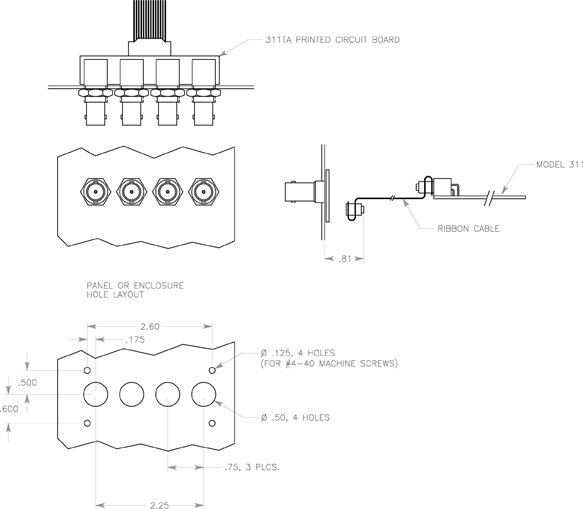

Model 311TA dimensions


Documentation

FileVersionDate M-D-YTypeSize
Model 311 Instruction Manual1.0.010-24-19PDF240 KB
SDK Application Note1.0.010-24-19PDF2 KB
Application Notes
311 Verified Computers10-24-19PDF40 KB

Downloads

FileVersionDate M-D-YTypeSize
Windows 2000/XP Software Development Kit1.0.010-24-19ZIP973 KB
Updated Windows 2000/XP Driver Component10-24-19ZIP9 KB
Windows CE Software Development Kit1.0.010-24-19ZIP50 KB
Linux Software Development Kit (for kernel 2.4)1.0.010-24-19ZIP170 KB
Linux Software Development Kit (for kernel 2.6)1.0.010-24-19ZIP19 KB
QNX Software Development Kit1.0.010-24-19ZIP68 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to your OS
for a NRE fee or, with a volume commitment, at no additional cost. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
3114-input frame grabber$244$222
311TAAccessory board$63$57
Cables
610C3Cable, coax, BNC composite video, 1-meter$35$35
Software
SDK11EEnhanced software kit$118$118
