PCI to PC/104+ Bus Adapter | Model 327/328
- Adapts PCI boards to PC/104+ card stack
- Selection jumpers for IDSEL, REQ, GNT, CLK, and INTA lines
- Hold-down bracket secures PCI board
Description

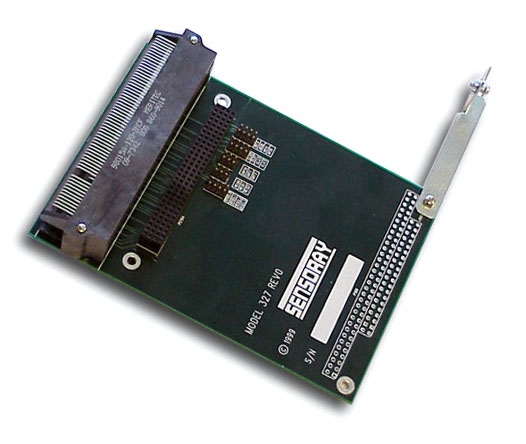

Model 327 and 328 are bus-to-bus adapters that allow operating a PCI board from a PC/104+ card stack. They allow selection of important PC/104+ signals using jumper plugs, thereby avoiding the requirement of using hardwired settings. Model 327 aligns the PCI board parallel to the PC/104+ boards, while model 328 places it perpendicular.

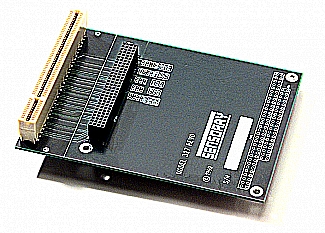

Model 328, with connector for perpendicular daughter board
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Model 327 Instruction Manual | 1.0.0 | 10-24-19 | 260 KB | |
| Model 328 Instruction Manual | 1.0.0 | 10-24-19 | 84 KB |
