USB 3.0 HD video + audio capture device | Model 3364

Model 3364 USB 3.0 HD video + audio capture device
  • HD/SD video capture from DVI or SDI
  • Captures uncompressed 1080p60 with very low latency
  • H.264 HP@L3 / MJPEG video compression
  • AAC audio compression
  • Unicode text and graphic overlay
  • UVC compliant
  • USB 3.0, bus powered

Description

Model 3364 is a USB 3.0 HD video capture device available in SDI and DVI versions. It captures uncompressed HD/SD video at resolutions up to 1080p60 and will overlay and compress resolutions up to 1080p30. It can simultaneously send both compressed and uncompressed video to the host computer. With appropriate adapters (not included), DVI versions can also capture component, VGA and composite signals. Depending on the version, it has either two DVI or two SDI connectors (one input, one output).

Audio can be captured from a microphone or line source using a 3364TA accessory board or from the SDI input (on SDI versions). Audio may be sent uncompressed, or it may be compressed and multiplexed into a transport stream along with compressed video, or both simultaneously.

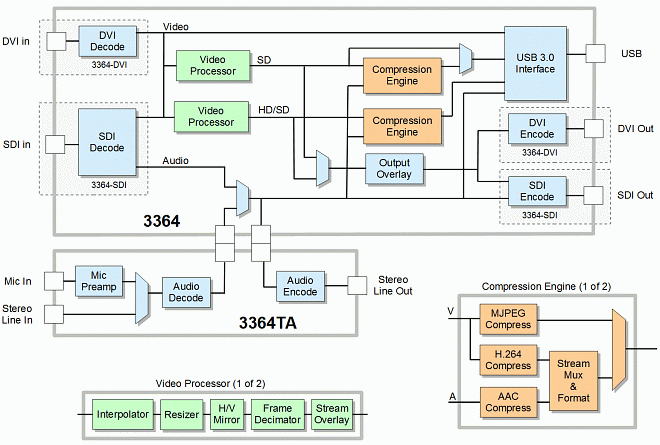

3364 block diagram, shown with optional 3364TA audio interface


Software

The unit is a fully compliant UVC (USB Video Class) device that works with any standard UVC driver, thus eliminating the need for a custom driver and allowing seamless control through video APIs such as DirectShow and Video4Linux.

Free Linux and Windows software development kits (SDKs) are available for model 3364. The SDKs include our versatile high-level API with popular functions such as snapshot capture, recording to files (in AVI, MP4 and TS formats), overlay management and, to facilitate styled text, functions for drawing Unicode text on video overlays. Also included is a comprehensive demo program that shows off the device's full capabilities, complete with source code that serves as an ideal starting point for custom applications.

Video processors

Dual video processors and compression engines allow the input video to be split and simultaneously processed as two independent streams. Video processing functions include image resizing and mirroring, frame rate decimation, and overlaying qualified regions with graphics and text. This capability is essential in many applications, such as when a high quality stream is required for recording while another stream of lower resolution, bit rate, or both, is needed for mobile device viewing or transmission over bandwidth-limited networks.

Stream formats

Each compression engine independently performs MJPEG or efficient, high-profile H.264 video compression. In the latter case, audio is compressed to AAC-LC and the stream multiplexer outputs MPEG transport stream (MPEG-TS) format. The multiplexer employs high precision hardware timestamps to ensure perfect audio-video sync on players.

Output signals

For video resolutions up to 1080p30, the unit can pass through unaltered or modified (e.g., downsized) video while adding overlays. The output overlay block supports high-speed updates of Unicode text and graphics, which may be uploaded in real time via USB. Audio pass-through is available with a 3364TA board and on the SDI output (on SDI versions).

Packaging options

Model 3364 is available as a bare board (3364-SDI and 3364-DVI) or as an enclosed unit (3364-SDIS and 3364-DVIS). Enclosed units combine a 3364 bare board and a 3364TA audio accessory board in a robust metal enclosure, thus providing built-in analog audio interfaces. Bare board versions do not include a 3364TA audio accessory board, so a 3364TA must be purchased separately if you require analog audio interfaces.

Model 3364-SDI

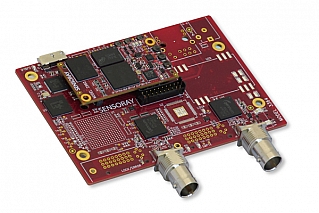

Bare board with SDI in/out connectors

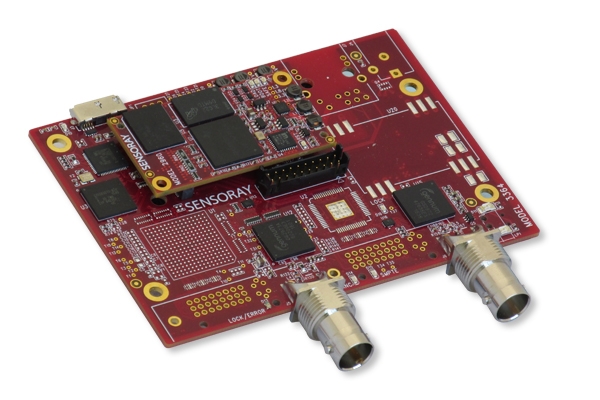

Model 3364-SDI with SDI in/out connectors

Model 3364-DVI
Bare board with DVI in/out connectors

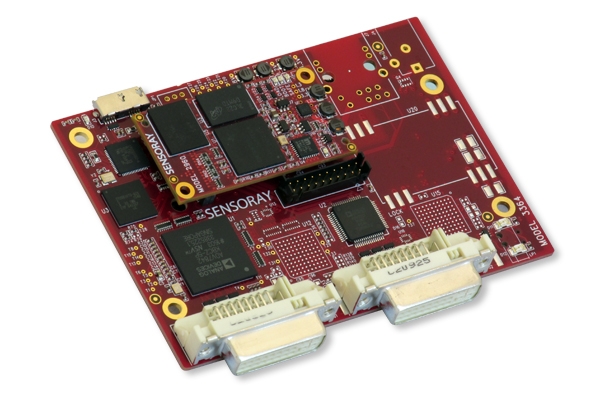

Model 3364-DVI, with two DVI connectors

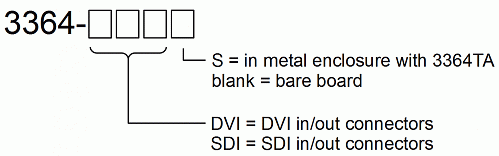

Ordering information


Specifications

Video Input/Output, SDI option
Data rates 270 Mbps, 1.483 Gbps, 1.485 Gbps
Standards SMPTE 259M(C), SMPTE 292, SMPTE 424M
Maximum resolution/frame rate 1920x1080p60
Connector type/impedance BNC, 75 Ohm
Video Input/Output, DVI option
Input resolutions/frame rates
(DVI, VGA, component, composite)
720x480i60
720x576i50
1280x720 at p30, p25, p60, p50
1920x1080 at i60, i50, p60, p50, p30, p25, p24
1920x1200p30
1680x1050p30
1600x1200p30, 1600x900p30
1440x900p30, 1360x768p30
1280x1024p60, 1280x960p60, 1280x800p60,
1280x768p60, 1280x720p60
1152x864p60, 1152x648p60
1024x768p85
800x600p85
Output resolutions/frame rates (DVI) 720x480p59.94
720x576p50
1280x720p30
1280x720p50
1280x720p60
1920x1080i50
1920x1080i60
1920x1080p24
1920x1080p25
1920x1080p30
Connector Type DVI-I. Component, composite and VGA inputs supported with adapters.
Output video streams
H.264 High Profile @ Level 3 (MP4, AVI, transport stream)
JPEG single snapshots, AVI
Raw (uncompressed) UYVY (full resolution at full frame rate available with USB 3.0 hosts only)
Ethernet option
Protocols HTTP, RTP, RTSP, UDP
Security Password protection, IP address filtering, digest authentication, user access log
Electrical, mechanical and environmental
Dimensions 71x100 mm (PCB outline, does not include connectors)
Mass 40 g
Operating temperature 0º to 70º C
Interface USB 3.0, micro-B connector
Connector USB 3.0 micro B device (socket)
Power 3 W max
Software (Windows and Linux)
Driver UVC video
SDK Library wrappers around the DirectShow (Windows) or V4L2 (Linux) API’s.

Documentation

File Version Type Size
Technical manuals
Hardware manual
for models 2464 and 3364
1.0.0PDF1.64 MB
Software manual
for models 2263, 2464 and 3364
1.1.4PDF1.08 MB

Downloads

File Version Type Size
3364 Linux software development kit1.1.4BZ26.22 MB
3364 Windows software development kit1.1.4ZIP12.32 MB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
DVI capture devices
3364-DVIDVI video capture device, bare board$802$728
3364-DVISDVI video + analog audio capture device in metal enclosure
Includes built-in 3364TA audio accessory board
$979$899
SDI capture devices
3364-SDISDI capture device, bare board$1177$1059
3364-SDISSDI video + analog audio capture device in metal enclosure
Includes built-in 3364TA audio accessory board
$1354$1231
Accessories
3364TAAudio accessory board$70$64
