MPEG-2/1 audio/video encoder/decoder | Model 616

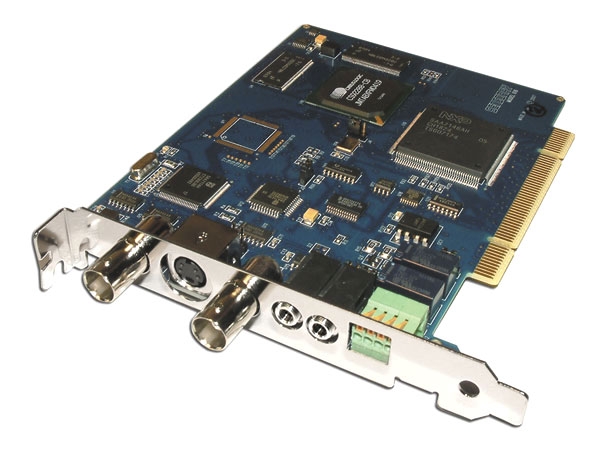

Model 616 MPEG-2/1 audio/video encoder/decoder
  • Real time MPEG-1/MPEG-2 encoding/decoding
  • NTSC/PAL video + stereo audio
  • Uncompressed preview images
  • Text overlay
  • 2 TTL inputs, 2 output relays

Description

Model 616 is a PCI frame grabber that captures and transfers full-frame (640x480) video at 30 frames per second. It uses hardware compression to produce encoded MPEG-2 and MPEG-1 data streams of 100 kbits to 10 Mbits per second. It also has two audio input channels that are synchronized to the MPEG data.

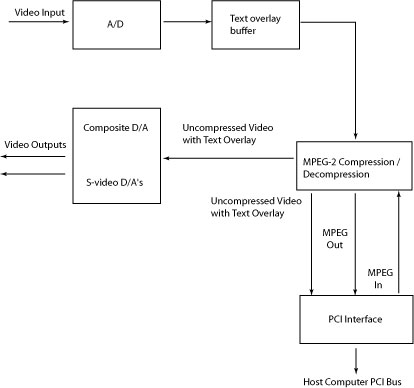

Block diagram


Advantages

MPEG-2 data reduces the amount of memory required to store full-motion video. The compressed data requires a smaller transmission bandwidth. This makes it possible to transmit 30 frames/second video over a 10/100 Base-T Ethernet. The hardware compression circuit uses a motion estimation algorithm to produce smooth images from interlaced cameras. The length of MPEG-2 video streams is not limited by the viewing software.

Real-time viewing

The uncompressed video stream may be displayed in real-time on the host computer's monitor while the MPEG circuit is compressing it. Uncompressed video is sent directly to the graphic adapter's video memory under the control of Video for Linux.

Decompression

Encoded MPEG-2 data can also be decompressed by the 616's hardware to produce composite video and audio. The video output is also available as S-video. The audio output is available at an audio jack on the hold-down bracket.

Digital I/O

Two optically coupled inputs and two relay outputs share a common terminal black on the hold-down bracket. The relay outputs can be configured as normally open or normally closed.

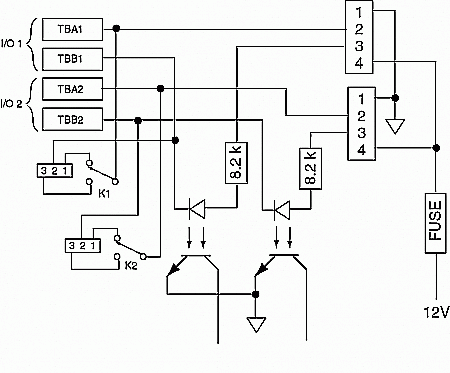

Model 616 digital I/Os


Text caption buffer

A 32-character buffer is available for adding text to each frame. The text is within a transparent box that may be positioned anywhere within the frame.

Self test

Digitized video and audio inputs can be looped back to the output circuits to allow camera and sound adjustments. The 616's video D/A can be programmed to generate color test bars. This is useful for testing the video output channel.

Video outputs

In addition to the MPEG data stream, two types of uncompressed video output are available. The digitized video input may be looped back to the 616's digital-to-analog converter to produce composite and S-video outputs. These analog signals will contain the text in the caption buffer.

The uncompressed images are also available over the PCI bus. The 616's driver can optionally write full-size images directly to the host's video memory. This allows previewing the camera stream while the MPEG stream is recorded to the host's main memory.

Lost video detection

The status of the camera's vertical and horizontal sync signals may be used to detect the presence or absence of the camera signal. The included software allows reading these signals to detect a lost video signal.

Specifications

Power input3.3 V, 280 mA
Capture rate30 frames/second (NTSC, RS-170, CCIR)
25 frames/second (PAL)
A/D resolution8 bits luminance
8 bits chrominance
Input resolution704x480 (NTSC)
704x576 (PAL)
Output resolution704x480 (NTSC, RS-170)
768x576 (PAL)
Video inputComposite or S-video
Video outputPAL or NTSC from a BNC connector
Output dataMPEG-2 streaming data
Rates of 100 kbits to 10 Mbits/second
Text overlay32 characters
616s/computer3
Audio input and output±1.0 V
Digital I/O2 opto inputs
2 relay outputs
Board dimensions(W x H): 5.5 x 4.2 inches
Bus standardPCI 2.1
Address mappingMemory-mapped
Supported streamsElementary, Program

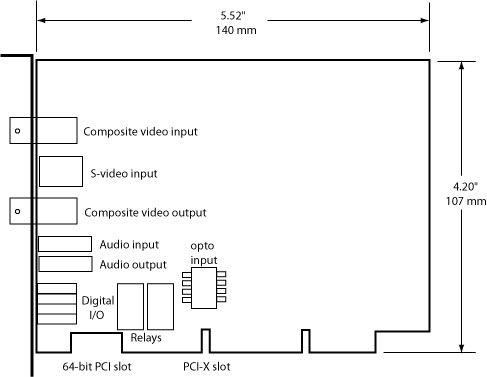

Model 616 dimensions


Documentation

File Version Type Size
Model 616 Hardware Manual1.0.0PDF56 KB
Model 616 Linux Programmer's Manual1.0.0PDF285 KB
Windows DirectShow Manual1.0.0PDF2.25 MB

Downloads

File Version Type Size
Windows Driver1.10.1ZIP377 KB
Windows Demo1.0.0ZIP69 KB
Windows CE Software Development Kit1.0.0ZIP269 KB
Windows DirectShow Software Development Kit1.0.0ZIP1.28 MB
Linux Software Development Kit2.3.14GZ1.17 MB
QNX Software Development Kit1.0.0ZIP248 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
616MPEG-2/1 audio/video encoder/decoder$392$361
Cables
610C2Cable, S-Video (Y/C), 1-meter$44$44
610C3Cable, coax, BNC composite video, 1-meter$30$30
