Model 627  | Compact PCI to PCI Adapter
Features
  • Allows testing CompactPCI boards using an inexpensive desktop PC
  • Exclusive HotSwap software utility eliminates the need to restart the host after hot-swapping CompactPCI boards
  • No disturbance to host PCI bus during hot-swapping
  • Single switch operation and LED power indicator
  • Header pins available for logic analyzer hookup

Model 627 allows testing CompactPCI boards using an inexpensive desktop PC. The 627 offers significant time savings during product development and production testing by allowing CPCI boards to be hot-swapped within a desktop PC.

There is no need for an expensive CompactPCI enclosure and processor to test CPCI boards.

Protects computer
Use of the 627 protects the system’s PCI slot from physical wear and reduces the system’s electrical stress from frequent power cycling.

Software and Manuals

Sensoray’s HotSwap utility is supplied with the 627 adapter. It allows CompactPCI boards to be replaced without resetting the host computer. The HotSwap utility saves and restores the configuration registers of the CompactPCI board that is otherwise lost when it is removed from the host PC.

627 Instruction Manual Released 7/3/01
Hotswap Version 1.1 Released 9/23/03

Specifications

Bus PCI, 32-bit, 33 MHz
Control Single illuminated push button
Mounting Standard PC hold-down bracket
Compact PCI board mounting Guide rails and a CPCI hold-down bracket
Dimensions 6.5" x 4.75" x 0.75" ( does not include the CPCI hold-down bracket)
Power 5 VDC, 50 mA | +/- 12 VDV available

Images and Mechanical Drawings

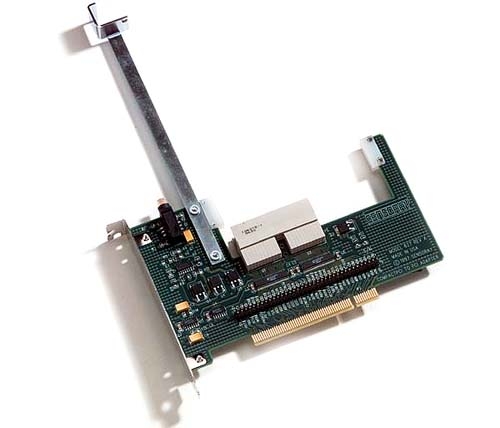

Model 627 large

Prices

Model 627 Compact PCI to PCI Adapter Qty. 1 $326 Qty. 2-9  $304
