Breakout board, 26-pin, DIN rail mountable | Model 7503TDIN
- Breaks out 26-conductor flat cable to spring terminals
- DIN rail mountable
Description

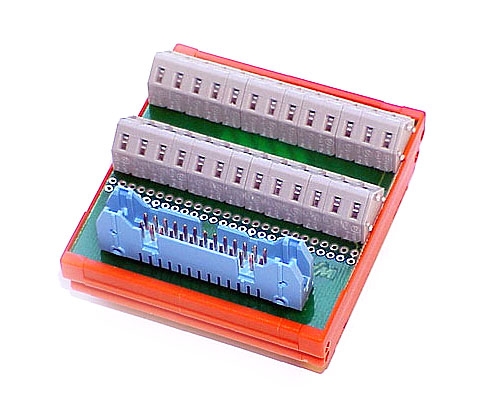

Sensoray's Model 7503TDIN is a DIN-rail-mountable termination board that breaks out a 26-conductor flat cable onto 26 individual spring terminals. It provides a robust solution for interfacing any 26-pin cable to field wiring, and is compatible with several Sensoray boards including models 826, 626, and 425.
A small screwdriver (not included) is used to release the board's grip on field wires. To make a wire connection, simply press the screwdriver blade into the slot opposite the wire entry and insert a wire into the entry.
Specifications
| Electrical | |
|---|---|
| Operating voltage | ≤ 100 VAC; ≤ 125 VDC |
| Current | ≤ 1 A |
| Rated impulse voltage | 0.8 kV |
| System connector | |
| Type | Male header with latches |
| Pin count | 26 (dual 13-pin rows) |
| Pin pitch | 2.54 mm / 0.100 inch |
| Pin row spacing | 2.54 mm / 0.100 inch |
| Orientation | Vertical |
| Contact material | Au over Ni |
| Terminal blocks | |
| Type | Spring-loaded clamp |
| Poles | 26 (dual 13-pole blocks) |
| Wire type | Solid or stranded |
| Wire diameter | 0.08 to 2.5 mm / 28 to 12 AWG |
| Wire strip length | 5 to 6 mm / 0.2 to 0.24 inch |
| Mechanical | |
| Mounting type | DIN-35 rail |
| Width | 71 mm / 2.795 inch |
| Height (from DIN-35 rail top edge) | 36 mm / 1.417 inch |
| Depth | 85 mm / 3.346 inch |
| Weight | 75.3 g |
| Environmental | |
| Operating temperature, ambient | -20 to 55 °C |
| Storage temperature | -40 to 70 °C |
| Relative humidity | ≤ 85%, non-condensing |
| Classification | |
| Product group | 6 (Interface Electronics) |
| Ingress protection | IP20 |
| Pollution degree | 2 |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Manuals | ||||
| 7503TDIN technical manual | 2.0.0 | 03-06-26 | 130 KB | |
| Other | ||||
| 7503TDIN STEP file for 3D enterprise modeling | 1.0.0 | 03-06-26 | STEP | 3.75 MB |
