A/V MPEG-4, MJPEG, H.264 encoder/decoder with overlay | Model 2253

Model 2253 A/V MPEG-4, MJPEG, H.264 encoder/decoder with overlayView CE compliance report
  • Simultaneous encode/decode/preview in a robust, compact unit
  • Low preview latency
  • H.264 HP@L3, MPEG-4 ASP, MJPEG video compression
  • AAC, G.711 audio compression, uncompressed PCM
  • Unicode text and graphic overlay
  • Closed caption/VBI support for H.264 streams
  • MP4 files can be edited in Adobe Premiere with A/V sync preserved
  • Transport Stream
  • Small Form Factor


Play video 2253_introductionWatch the video

Model 2253 is a compact and robust USB-compatible audio/video codec that is powered from a single USB port. Its small size (1.5" x 2.75") and low power consumption (1.5 Watts) make it ideal for both portable and embedded applications.

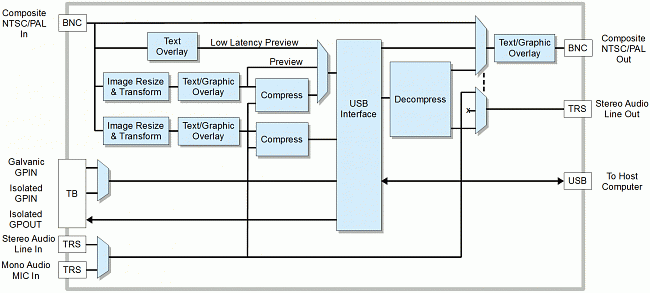

Simplified 2253 block diagram


Multiple, independent video processors allow the unit to simultaneously produce two different video streams from its single composite input and send the streams out over USB. One of the streams can be a low-latency uncompressed stream (useful for real time previewing) and the other compressed, or both streams may be compressed. Image transformations (resolution, rotation, mirroring) are independently configurable for each stream, as well as compression type and bit rate in the case of compressed streams.

Pause and resume are supported for both stream capture and playback. Up to 1024 bytes of application-supplied data can be inserted in the H.264 or MPEG stream at regular frame intervals or single shot, and closed captions are supported for H.264 streams.

Stream Formats

Video and audio are available as elementary streams or may be multiplexed in MP4 container format.

The 2253 supports transport streams by packaging elementary streams with error correction and stream synchronization to help maintain integrity when the signal is degraded. The transport stream uses AAC audio and H.264 for MPEG-4.

Digital I/O

One general purpose digital input and one output are provided. The output is optically isolated, while the input may be either optically isolated or galvanically coupled. The input is sampled every millisecond and, when a state change is detected, a notification is sent to the application program. The input can also be used to control the flow of any stream, without host involvement.

Audio Sync

Hardware-generated timestamps are employed to keep audio synchronized to the video, thus eliminating "lip sync" problems. MP4 files can be edited in Adobe Premiere Pro with A/V sync preserved.

Real-Time Text Overlay

The overlay generators can position up to 160 characters of text anywhere in the video frame. A unique text string, consisting of mixed constant and variable text, may be defined for each overlay generator. Text variables are automatically updated every video frame. Supported variables include time, date, and frame count.

Graphics Overlay with Unicode Text

Overlay images and high quality, styled unicode text (bold, italic, underline, outline and shadow) can be displayed on top of the composite video output, compressed streams, or preview stream (but not low latency preview stream).

Up to 256 full-color overlay regions are supported on the composite output, and up to eight monochrome-only regions are supported on compressed and preview streams (except low latency preview). BMP and PNG image formats are supported, with 24 or 32 bits per pixel and up to eight transparancy levels.

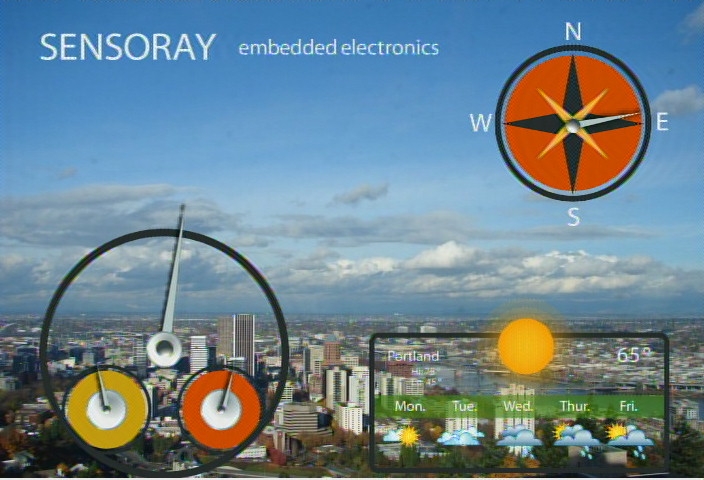

Example overlay captured from composite output
(up to 256 full-color overlay regions)

Example overlay captured from composite output

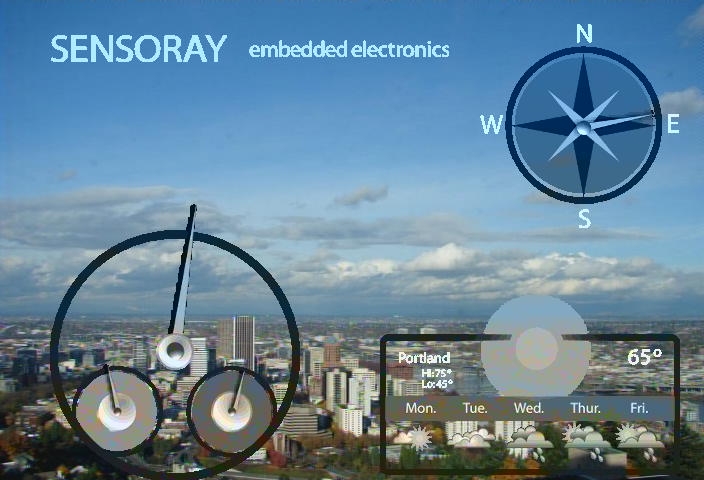

Example overlay captured from compressed stream
(up to eight transparency levels, monochrome only)

Example overlay captured from compressed/preview (but not low latency preview) stream

Please note that preview/compressed stream overlays (text or graphics) modify luminance only and consequently may be tinted by background colors. Also, unlike composite output overlays, these overlays are limited in number, size and complexity; see the above right image for an example what is possible.

Video Decoder

The 2253 can also perform as a decoder, converting a USB-supplied compressed audio/video stream into standard analog video and audio signals. (Note: Decoding is guaranteed only for streams captured with the 2253). The following formats are supported for decoding: MPEG-4, H.264, MP4 and MJPEG. The composite output video can be sourced from either the composite video input or a decoded compressed stream.

Low Latency Preview

Model 2253 supports a low latency preview mode for real-time applications. When capturing in native resolution (704x480 for NTSC or 704x576 for PAL) this mode reduces the overall latency by approximately one frame time. See the latency timing diagram for details.


A USB cable is supplied with model 2253. Video cables must be purchased separately.

Packaging Options

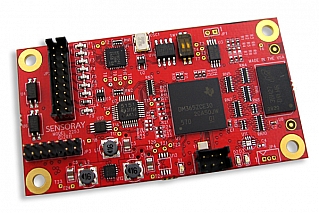

Model 2253 is a small footprint, bare-board version for OEM applications.
It is CE compliant when used in an appropriate enclosure.


Model 2253S features a sturdy metal enclosure with video, audio, USB and GPIO connectors.

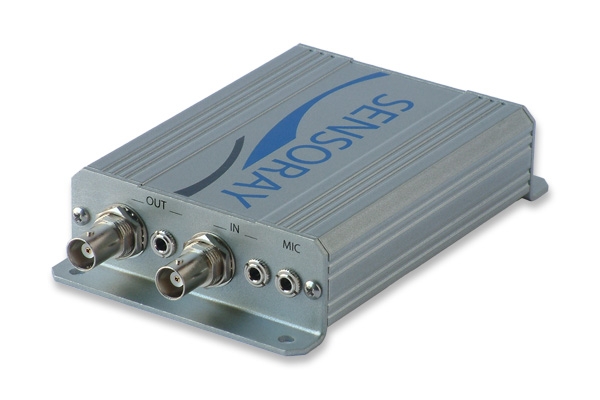

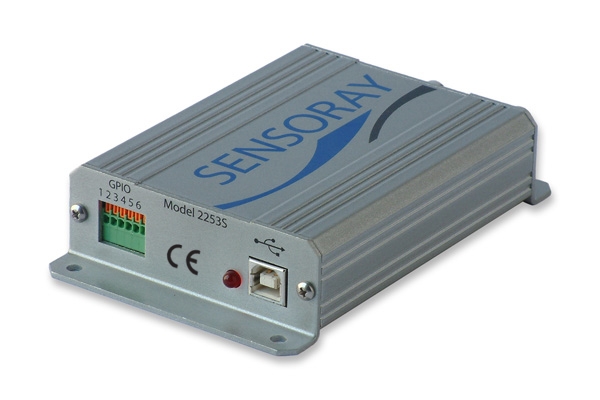

Model 2253S front viewModel 2253S rear view

Model 2253P combines a 2253, a GPS receiver, and incremental encoder interfaces in a robust metal enclosure.

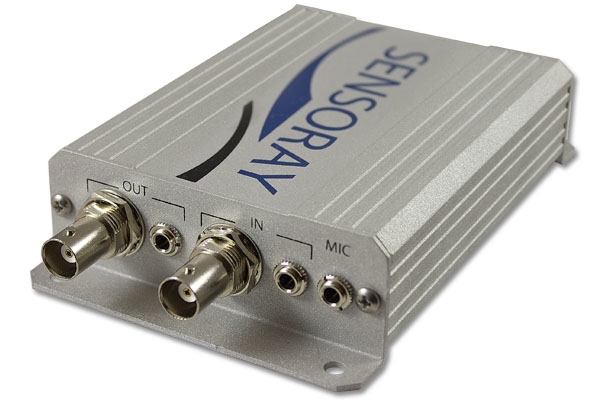

Model 2253P front viewModel 2253P rear view

Easy Integration

The 2253 bare board is ideal for embedding with computers on modules (COMs) such as the Toradex Apalis. Watch this short video to see how easy it is to integrate the 2253 with a compact CPU:

Play video toradex_and_sensorayWatch the video

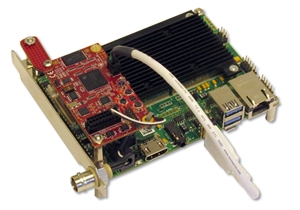

Model 2253 with Toradex Apalis.

Model 2253 mounted on a Toradex CPU


Input 1 NTSC/PAL composite, 75 Ohm
Output 1 NTSC/PAL composite, 75 Ohm
Preview format 640x480@ 30 fps (NTSC); 720x576@25 fps (PAL); YUV4:2:2, GREY8, JPEG, RGB
Preview latency See timing diagrams below
Inputs 1 line stereo + 1 microphone mono
Software selectable (only one may be active)
Output 1 line stereo
Text Overlay Up to 160 characters for full resolution images
Video Output Overlay Up to 256 regions of BMP and PNG (with 24 or 32 bits/pixel), or unicode text.
16-bit color, 3-bit alpha channel
Video Capture Overlay Up to 8 monochrome regions of BMP and PNG (with 24 or 32 bits/pixel), or unicode text
Image transformation 2 independent image transformers:
Resize to various resolutions
Rotate 90°/180°/270°
Mirror horizontally or vertically
Encoding format Video: H.264 HP@L3, MPEG-4 ASP, JPEG;
Audio: G.711, AAC
Output stream format Elementary audio/video, MPEG-4 program stream (.MP4), MJPEG AVI, Transport Stream
Interface USB 2.0 High-speed
Digital I/Os 1 input, galvanically coupled or optically isolated
1 output, optically isolated
Power consumption <1.5 W (300 mA @ 5 V) from USB port
Operating temperature Standard version: 0 to 70 °C
Extended version: -40 to +85 °C
Dimensions 2253: 2.755" x 1.5"
2253S: 5.14" x 3.28" x 1.14"

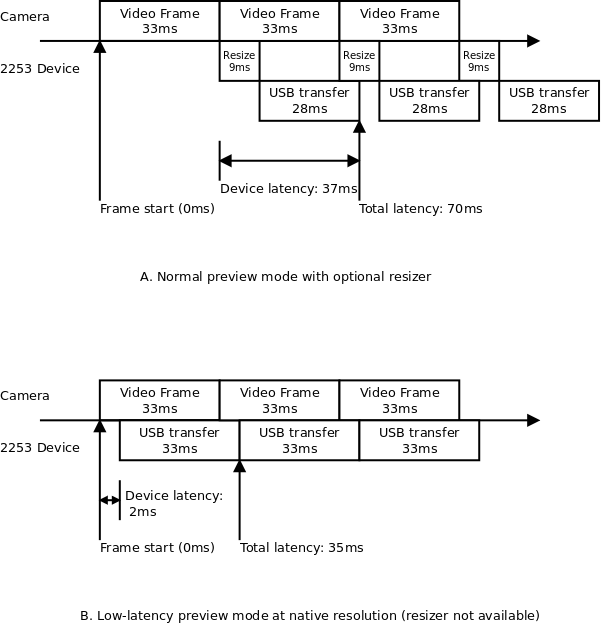

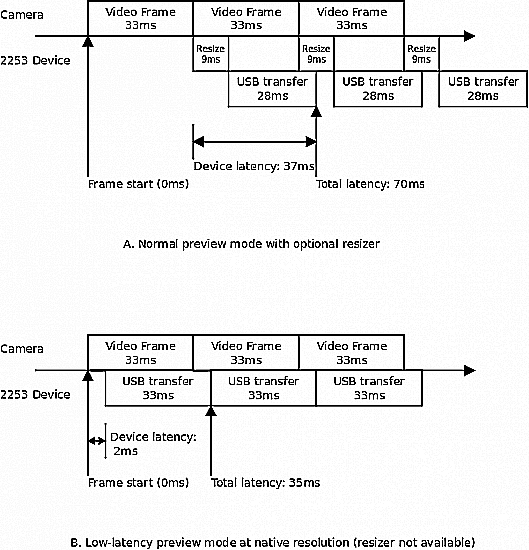

Preview Latency Timing



File Version Type Size
2253 Hardware Manual1.2.1PDF530 KB
2253 Linux Software Manual1.2.8PDF396 KB
2253 Windows Software Manual1.2.29PDF1.32 MB
Mechanical Drawings
Mechanical drawing, 22531.0.0PDF22 KB
Mechanical drawing, 2253 mounted on 2253TA1.0.0PDF97 KB
Mechanical drawing, 2253S1.0.0PDF518 KB
Model 2253 tech support wiki
FAQs, examples and additional information
CE Compliance Report, 2253PDF2.04 MB


File Version Type Size
2253 Linux Software Development Kit1.2.14BZ25.32 MB
2253 Windows Software Development Kit
Compatible with Windows 7, Windows 8, Windows 10, Windows XP, and Windows Vista
1.2.30ZIP28.84 MB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
Standard Temperature
2253Audio/video MPEG-4,MJPEG,H.264 encoder/decoder board$328$298
2253SAudio/video encoder/decoder with enclosure$400$369
Extended Temperature
2253-ETAudio/video encoder/decoder board, extended temperature$350$320
2253S-ETAudio/video encoder/decoder with enclosure, extended temperature$426$387
