Model 812 | 8-Channel Frame Grabber

Features

  • 8 channel frame grabber with 8-channel mono audio capture
  • NTSC and PAL compatible
  • 8 composite video inputs
  • 8 mono audio inputs
  • 8 general-purpose digital I/Os for camera control
  • PCI Express x1 interface

Description

Sensoray Model 812 is an 8-channel PCI-Express frame grabber that can simultaneously capture 8 channels of NTSC/PAL video, plus optional 8 channels of mono audio. Each video channel captures at full frame rate 30 fps (for NTSC) or 25 fps (for PAL), which results in an aggregate frame rate of up to 240 fps (for NTSC) or 200 fps (for PAL). The board implements a single-lane (x1) PCI-Express interface that enables it to be plugged into any width of PCI-Express slots. All operating power is supplied from the PCI-Express bus and no external power supply is needed.

Video

All 8 composite video inputs are connected through a DB15 connector with a DB15-to-BNC breakout cable, an additional 34-pin connector can be used for breaking-in the composite video input signals. The video capture resolution can be chosen from D1, VGA, QVGA, CIF, 4CIF, SIF, 4SIF, etc. Captured frames could be in YUYV, YUV420, or RGB555/RGB565 formats.

Audio

All 8 mono audio inputs can be connected through a second DB15 connector with an optionally supplied DB15-to-BNC breakout cable. The 34-pin connector can be used for breaking-in the audio input signals. The audio sampling rate could be at 8K, 16K, 32K, 44.1K, or 48K Hz.

Digital I/Os

Eight general-purpose digital I/O (DIO) signals are provided for camera control, status indication, or alarming, etc. They can be configured to function as inputs or outputs.

Cables

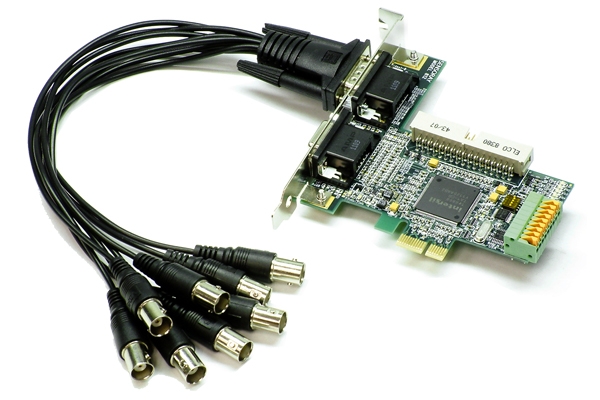

One model 812C1 cable (shown in image above) is included with model 812, which can be used to connect eight video signals or eight audio signals to the board. In applications that require both audio and video inputs, an additional 812C1 cable should be purchased separately.

Software

Software Development Kits (SDK) are available for Linux and Windows. The SDKs include drivers, programming samples, and comprehensive documentation to help users/programmers to quickly start and develop custom applications using the Model 812.

Applications

Sensoray Model 812 is designated for video surveillance applications. However, it can be used for all other multi-channel vision, image processing, and video capturing + recording applications. With chipset supplier's expectation, all video source signals are expected from stable video sources. The board is not suitable for weak video signal sources and/or switching video source applications. To get better multi-channel perview performance on PCs with an Intel chipset, a discrete (non on-motherboard) graphic video card might be needed.

Accessories


Model 812C1

One model 812C1 cable (shown in image below) is included with model 812, which can be used to connect eight video signals or eight audio signals to the board. In applications that require both audio and video inputs, an additional 812C1 cable should be purchased separately.

DB15-to-BNC breakout cable for Model 812*

* See Model 812 Hardware Manual for current A/V channel order

Specifications

Video Formats NTSC, PAL
Video Inputs 8 input channels, simultaneously:
    8 Composite video via DB15 connector, 75 Ohms; or
    8 Composite video via a 34-pin break-in connector, 75 Ohms
Audio Inputs 8 input channels: Mono, associated with the 8 separated video channels
    8 Mono audio channels via DB15 connector, Line-in level; or
    8 Mono audio channels via a 34-pin break-in connector Signal level: Line-in level, +/- 1.0V
Video Capture Mode Raw: YUYV, UYVY, YUV420, RGB555/RGB565
Video Capture Rate Up to: 240 (30x8) frames/sec for NTSC
200 (25x8) frames/sec for PAL
* See Maximum Channels vs. Maximum Frame Rate chart below for details
Resolution Supported:
    D1.NTSC: 720x480, D1.PAL: 720x576
    SIF: 352x240, 2SIF: 704x240, 4SIF: 704x480
    VGA: 640x480, QVGA: 320x240, QQVGA: 160x120
    CIF: 352x288, QCIF: 176x144, SQCIF: 128x96, 4CIF: 704x576
Audio Sampling Rate 8K, 16K, 32K, 44.1K, 48K Hz
Digital I/O 8 inputs, or 8 outputs, or 4 inputs + 4 outputs:
    configurable inputs/outputs, break-in/out via a 34-pin connector;
    or optionally via I/O terminal blocks;
    Signal Level: TTL signals
Bus PCI-Express x1: Compliant of PCI-Express Base Specification (Revision 1.1/2.0)
OS Platform Linux (Windows coming soon)
Power 825mW, +3.3V @ 0.25A
Temperature 0 - 70 °C
Board Size 4.1" x 3.9" (105mm x 100cm)

Maximum Channels vs. Maximum Frame Rate

Sensoray bundles chipset supplier's drivers with Model 812 for both Linux and Windows. The Linux driver is a high performance driver that makes possible simultaneous full frame rate capture at D1 resolution from all eight input channels. The Windows driver, however, has lower performance that may require tradeoffs between the number of active channels, resolution, and frame rate.

The following table shows the Maximum Channel vs. Maximum Frame Rate that will reliably result in error-free performance on a typical reasonably-new PC/Server. In most cases these performance levels will be enhanced when using higher performance host computers.

Maximum Channels vs. maximum Frame Rate Performance

Driver Active Video Channels Resolution Frames/Second/Channel
NTSC PAL
Linux 1 - 8 VGA, 4SIF/4CIF, D1, or under 30 25
Windows 1 - 4 VGA, 4SIF/4CIF, D1, or under 30 25
5 - 8 QVGA, SIF, CIF, or under30 25

Documentation

File Version Type Size
Manuals
812 Hardware Manual1.0.1PDF744 KB
812 Windows Software Manual1.0.0PDF315 KB

Downloads

File Version Type Size
812 Windows Software Development Kit1.0.3ZIP14.55 MB
812 Linux Software Development Kit0.1.9ZIP120 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to port it yourself. Contact Sales for details.

Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
8128-Channel Frame Grabber$199$186
812C1Cable, DB15-to-BNC breakout for model 812 or model 810$25$23
