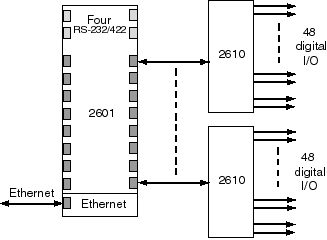

This is another member of the 2600 series of smart I/O modules which connect to an Ethernet via a 2601 communication module. It can read or write to 48 digital I/O lines.  The 2610’s microcontroller provides I/O services to a remote client such as model 2601 via a category-3 cable.  The cable supplies isolated serial communication and power to the 2610’s microcontroller.

Switch de-bounce
The 2610’s microcontroller uses a 10 millisecond de-bounces filter on all digital input lines. This minimizes errors from electromechanical switch bounce

Interlocks

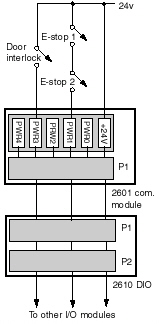

Up to five independent interlock circuits and/or emergency stop circuits can be threaded through the 2650 relay and 2610 digital I/O modules. Each digital output can be jumper programmed to open when an interlock voltage is removed.

Field Wiring

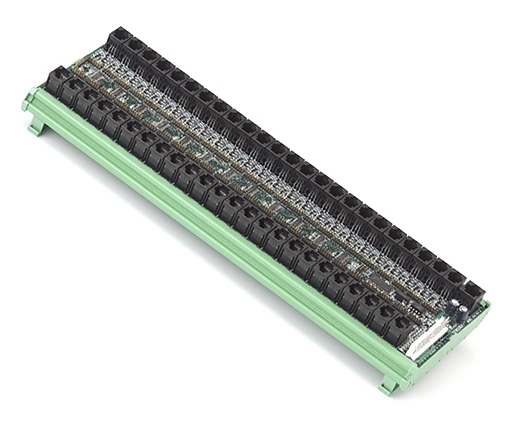

The 2610 has forty-eight RJ-11 jacks for direct connection to field wiring.  Each jack supplies interlocked power and connections for up to three digital I/O channels.  Two of the three channel connections are repeated in adjacent jacks.  This allows connecting an I/O cable that has three signals to a single RJ-11 jack.

I/O Modules
A wide range of I/O module types are available.  Each I/O module type has a specialized function such as analog I/O, thermocouples,  relays, digital I/O, etc.  A low-cost category-5 patch cable connects each I/O module to its Communication Module. Any combination of I/O modules may be connected to a Communication Module.

All I/O modules have on-board DC/DC converters to power module circuitry. This feature helps to prevent ground loops and associated common mode voltage problems when the I/O modules are distributed over long distances.  In addition, the inter-module communication circuits are optically isolated so as to eliminate communication ground loops.

Model 2601	Communication module
Model 2608-0	16 analog and TC inputs (16 bit)
Model 2608-4	16 analog and TC inputs (16 bit), 4 analog outputs (16 bit)
Model 2608-8	16 analog and TC inputs (16 bit), 8 analog outputs (16 bit)
Model 2610	48 digital I/O, 5VDC to 24VDCModel 2612
Model 2612	Strain Gauge via Ethernet
Model 2620	4 encoder/counter/frequency interfaces (32 bit)
Model 2650	8 relay outputs, 0V to 240V @ 10A
Model 2652	SSR I/O Module (Supports 8 SSRs)
Model 2653	SSR I/O Module (Supports 16 SSRs)
Model 204	Power supply, 24 VDC @ 5A


Design Assistant
Use our design assistant to help you configure a system unique to your specifications and calculate pricing.

Pulse Width Modulation
The first eight output channels may be programmed to produce pulse width modulated outputs to control electric heaters, flashing lights, etc.

Status Indicators
The 2610’s microcontroller can monitor and report the state of each I/O line.  Each line is monitored with an LED that lights regardless of whether the channel is driven by an external signal or by the channel’s output driver.

The 2610 has a RESET LED that flashes briefly after a software reset.  There are also XMT, RCV and LINK indicators that show communication with the communication module. A heartbeat LED flashes at two second intervals to indicate that the 2610 is function properly Non Ethernet System.

Motion Detection
The 2250  performs motion detection  in three user programmable regions of interest.  For each separate region of interest, the user can set up different motion detection sensitivity.  Within the regions of interest motion can be further localized to a 16x16 pixel block. Please see images under the tab "Images and Mechanical Drawings.

Software and Manuals

Full-featured Windows 98/NT/2000/XP and Linux libraries are available below in the software development kit, along with comprehensive sample programs.

A Windows DLL for the 2600 series is provided at no additional cost. It requires the use of a 2601 communication module in addition to the 2610. The Windows 98/NT/2000/XP DLL is a common interface for the entire 2600 series. The SDK includes sample programs for Visual Basic and C++. The source code for these programs show how to use the DLL. A second DLL is provided for systems that use the 2699 serial port adapter.

2600 Hardware Manual	Released 9/16/08
2600 Programming Guide	Released 9/16/08
2600 Software Development Kit	Released 11/18/08

Specifications

Images and Mechanical Drawings

Prices

Please use our design assistant to help you configure a system and calculate pricing.

Model 2600 Series	Industrial I/O via Ethernet		Please use our design assistant
Model 2601	Communication Module	Qty 1: $463	Qty 2-9: $421
Model 2610	Digital I/O	Qty 1: $295	Qty 2-9: $268
Model 204	24 V power supply	Qty 1: $122	Qty 2-9: $122
Model 26C3	3 ft category-3 cable	Call for current prices
Model 26C50	50 ft category 5E	Call for current prices
Model 26C100	100 ft category 5E	Call for current prices
Model 2600C1	Power Daisy Chain cable	Qty 1: $14.55	Qty 2-9: $14.55
Model 2601C1	3 ft. Cat 3 or higher patch cable	Qty 1: $10	Qty 2-9: $10
Model 2601C2	6 ft. Null modem cable	Qty 1: $8	Qty 2-9: $8
