Embeddable DVR with incremental encoder interface, horizontal USB connectors | Model 4013
- Customizable user interface
- Supports simultaneous recording to 2 USB devices
- Grabs JPEG snapshots without video interruption
- Two 32-bit incremental encoder interfaces
- Real-time video overlay of time/date/encoder position
- Wireless operation with external WiFi adapter
- Stereo line inputs
- Clock/calendar with battery backup
Description

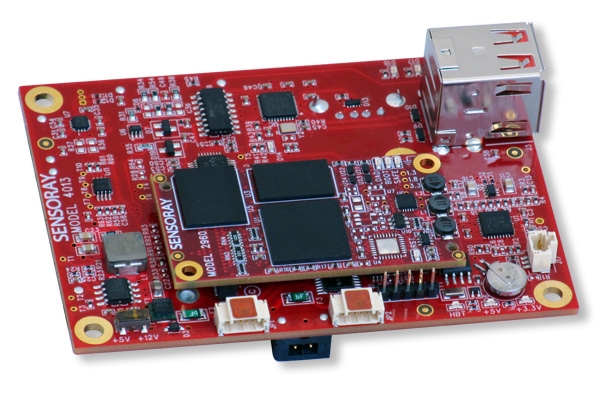

Watch the videoModel 4013 is a compact digital video recorder (DVR) that is optimized for embedding in OEM systems. It records audio and video (A/V) to USB storage media and can capture JPEG images on-the-fly without interrupting recording.
Two incremental encoder interfaces allow position information to be overlaid directly onto the video. The A/V outputs allow live video, recorded A/V or JPEG snapshots to be displayed on an external monitor. Date and time are maintained by a real-time clock with battery backup. To implement a complete embedded DVR simply connect power, your own custom keypad and a USB storage device. If incremental encoders are not required, see Model 4011.

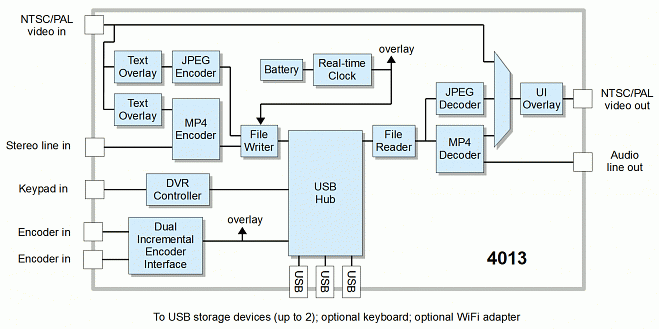

Simplified block diagram
WiFi
To create a wireless DVR, simply plug a USB WiFi adapter into one of the board's USB ports. Sensoray offers approved WiFi adapters for this purpose (see Accessories tab for details). This allows phones, tablets and laptops to view video and control recording and playback, and also enables the DVR to be operated without a monitor or keypad, which saves space and reduces cost.

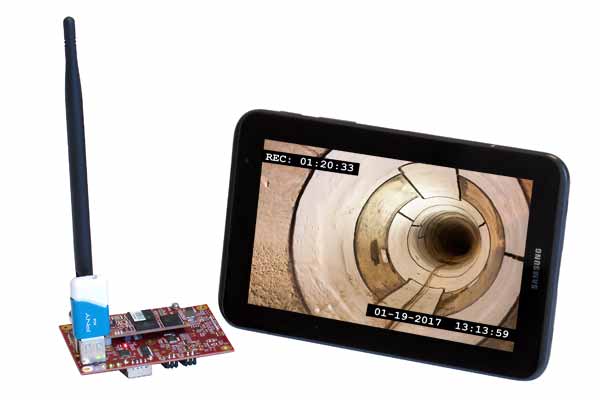

Wireless DVR with WA0001 WiFi adapter, transmitting pipeline inspection video to a tablet
Stream formats
The board encodes standard NTSC/PAL composite video using efficient H.264 compression. Stereo line-level inputs are digitized and compressed using AAC encoding. The compressed A/V streams are multiplexed and recorded as MP4 files on a user-supplied USB storage device, with file names automatically generated by the real-time clock. Bit rates can be tailored to match application requirements and storage capacity.
Incremental encoders
Encoder counts are reliably tracked by the incremental encoder interfaces, and automatically scaled to user-configurable displacement units such as meters or feet.
Video overlay
The text overlay generator can locate the current date, time and incremental encoder positions anywhere in the video frame. The date, time and encoder position text is automatically updated every video frame.
USB storage
An external USB storage device is required for DVR operation. If desired, a second USB storage device may also be connected and the 4013 will simultaneously record to both devices. A common application for this is recording to a removable device while creating an archival copy on a non-removable device. USB connectors are located on both sides of the board to facilitate connection to both removable and embedded storage devices.
User interface
The DVR's user interface consists of a user-supplied keypad working in conjunction with the board's on-screen menus. Each keypad connector pin can be routed to any keypad switch and configured to match the control scheme of your custom keypad. If preferred, a standard keyboard can be plugged into any USB port and used to control the DVR.
Accessories
USB WiFi Adapters
Model 4013 has been specifically designed to work with the following USB WiFi adapters (Note: other WiFi adapters are not guaranteed to work with Model 4013):
Medium-range Adapter
Model WA0001 is a Wireless N USB adapter with a high-gain, omni-directional 5dBi antenna, and 802.11b/g/n wireless protocols.

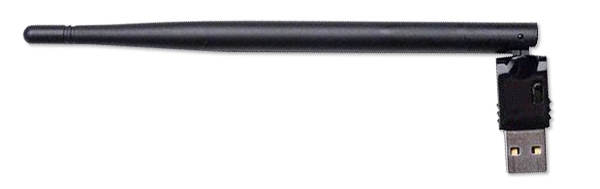

WA0001 — Wireless N USB WiFi Antenna
Short-range Adapter
Model WA0000 is a wireless USB nano network adapter with 802.11b/g/n wireless protocols.
WA0000 — WiFi Adapter
Specifications
| Video | |
|---|---|
| Input | NTSC/PAL, composite, 75 Ω |
| Output | NTSC/PAL, composite, 75 Ω |
| Audio | |
| Input | Line-level, stereo |
| Output | Line-level, stereo |
| Recorded formats | |
| Resolution | 720 x 480 @ 30 fps (NTSC) 720 x 576 @ 25 fps (PAL) |
| Video compression | H.264, HP @ L3 |
| Video snapshot | JPEG |
| Audio compression | AAC |
| Output file format | MP4 |
| Keypad interface | |
| Keypad switch signals | 9 GPIOs, TTL compatible, software configurable |
| Keypad power | +5 VDC, 50 mA maximum |
| Incremental encoder interfaces | |
| Channels | 2, quadrature encoded |
| Clock inputs | Differential RS-422 / single-ended TTL |
| Encoder power | +5 or +12 VDC, shunt selectable, 50 mA maximum per channel |
| Environmental | |
| Power | 12 V DC (± 4 V), 2.5 W |
| Operating temperature | 0 to 50 °C |
| Mechanical dimensions | 3.25 x 2.375 x 0.875 inches |
Documentation
| File | Version | Date M-D-Y | Type | Size |
|---|---|---|---|---|
| Manuals | ||||
| 4000 Series User Manual | 2.1.1 | 04-02-20 | 339 KB | |
| Serial DVR Control Protocol | 1.3.0 | 12-05-23 | 638 KB | |
| Application Notes | ||||
| Embeddable DVRs: A Primer for OEMs | — | 10-24-19 | 1.22 MB | |
| Mechanical Drawings | ||||
| Mechanical drawing, 4013 | 1.0.0 | 10-24-19 | 68 KB | |
