MPEG2 audio/video capture board | Model 516

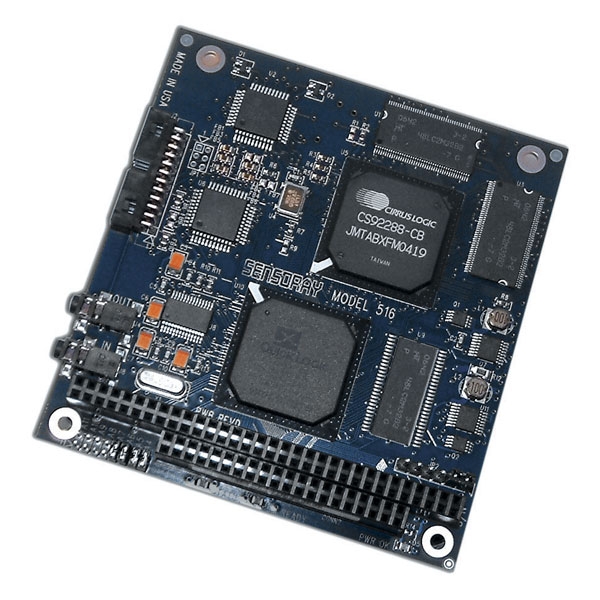

Model 516 MPEG2 audio/video capture board
  • Real time MPEG-1/MPEG-2 video encoder/decoder for NTSC, PAL
  • Text overlay
  • Supports variable and constant bit rates
  • 16-bit audio
  • 3 TTL digital I/Os
  • Low latency Windows stream player

Description

Model 516 is a PC/104 frame grabber that captures and transfers full-frame (640x480) video at 30 frames per second. It overcomes the low bandwidth of the PC/104 bus by using hardware compression to produce encoded MPEG-2 and MPEG-1 data streams of 440 kbits to 10 Mbits per second. It also has two audio input channels that are synchronized to the MPEG data.

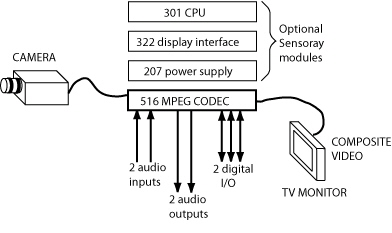

Model 516 Application


Advantages

MPEG-2 data reduces the amount of memory required to store full motion video. The compressed data requires a smaller transmission bandwidth. This makes it possible to transmit 30 frame-per-second video and audio over the PC/104 bus or over a 10/100 Base-T Ethernet. The hardware compression circuit uses a motion estimation algorithm to produce smooth images from interlaced cameras. The length of MPEG-2 video streams is not limited by the viewing software.

Decompression

Encoded MPEG-2 data can also be decompressed by the 516's hardware to produce composite video and audio. The video output is available at a flat cable header. The audio output is available at an audio jack and the flat cable header.

Video channels

The 516 has four multiplexed video channels that function as four separate composite channels or as two S-video inputs. Only one channel can be compressed at a time.

Digital I/O

Two bi-directional logic lines are under software control.

Text caption buffer

A 64 character buffer is available for adding text to each frame. The text is within a transparent box that may be positioned anywhere within the frame.

Self test

Digitized video and audio inputs can be looped back to the output circuits to allow camera and sound adjustments. The 516's D/A can be programmed to generate color test bars. This is useful for testing the video output channel.

Lost video detection

The status of the camera's vertical and horizontal sync signals may be used to detect the presence or absence of the camera signal. The included software allows reading these signals to detect a lost video signal.

Software compatibility

Model 516 has been tested and verified with the following: Suse 9.0-2.6.11, Suse 9.0-2.4.18, Suse 9.0-2.6.9, Fedora 2.6.10, 301 Linux, and Suse 7.3 (2.4.18).

Specifications

Streams
Supported streamsElementary (Audio & Video), Program
Output dataMPEG-2 streaming data at rates of 440 kbits to 10 Mbits/second
Video
Capture rate30 frames/second (NTSC, RS-170, CCIR)
25 frames/second (PAL)
A/D resolution8 bits luminance
8 bits chrominance
Input Resolution704x480 (NTSC)
704x576 (PAL)
Output resolution768x576 (PAL)
704x480 (NTSC, RS-170)
Video input4 Composite or 2 S-video
Video outputPAL or NTSC from a BNC connector
Text overlay64 characters
Audio
Audio levels±1.0 V
Audio sampling rate48 kHz
Digital I/O
I/O ports2 ports
Type2 bi-directional TTL signals
System
Bus typePC104
Address mappingMemory-mapped
516s per system4
Power and Environmental
Power input5 V, 600 mA
Operating temperature0 to 70 °C
Mechanical
Board dimensions(W x H): 3.55 x 3.78 inches
Mating connectors
Crimp housingMolex P/N 51110-2450
Crimp pinMolex P/N 50394-8100
Crimp toolMolex P/N 11-01-0204
Ribbon cable connectorMolex P/N 87568-24X

Documentation

File Version Type Size
Model 516 Hardware Manual1.0.0PDF46 KB
Model 516 Linux Programmers Manual1.0.0PDF285 KB
Windows DirectShow Manual1.0.0PDF2.25 MB

Downloads

File Version Type Size
Windows Driver1.10.1ZIP377 KB
Windows Demo1.0.0ZIP69 KB
Windows CE Software Development Kit1.0.0ZIP269 KB
Windows DirectShow Software Development Kit1.0.0ZIP1.28 MB
Linux Software Development Kit2.3.14GZ1.17 MB
QNX Software Development Kit1.0.0ZIP248 KB
Other Operating Systems
Need a software development kit for another operating system? We can port our SDK to
your OS or provide the information you need to do it yourself. Contact Sales for details.

Pricing & Ordering

Model Description Qty 1 Qty 2-9 Order Qty.
516MPEG2 audio/video capture board$477$431
Cables
610C2Cable, S-Video (Y/C), 1-meter$44$44
610C3Cable, coax, BNC composite video, 1-meter$30$30
Power supplies
207-01Isolated power supply, 5V$216$200
207-02Isolated power supply, 5V and ±12V$259$254
